LBP Led Backlit Panel Fitting

The LBP LED Backlit Panel Fitting is designed to deliver energy-efficient and uniform illumination for modern indoor environments. Featuring a backlit LED design and a high-performance LED light source, it provides consistent lighting coverage for commercial and institutional applications. Available in a range of sizes to accommodate different installation requirements, it offers a practical lighting solution with long-lasting performance and reduced maintenance needs.

Application: Offices, Commercial Buildings, Retail Spaces, Educational Institutions & Public Areas

Download Category: LBP

MSI InquiryNeed Help? Chat with us

DESCRIPTION

  • HOUSING MATERIAL: COLD ROLLED STEEL
  • COATING: WHITE EPOXY POWDER
  • RATE INPUT VOLT & FREQ: 220-240V, 50/60 HZ
  • POWER FACTOR: 0.9
  • THD: ≤20%
  • IP RATING: IP40
  • CCT: 3000K / 4000K / 6500K
  • LIFE SPAN: 50,000 HOURS

Specifications

OPTIONAL CONTROL GEAR / COMPONENTS

  • – EMERGENCY POWER-PACK

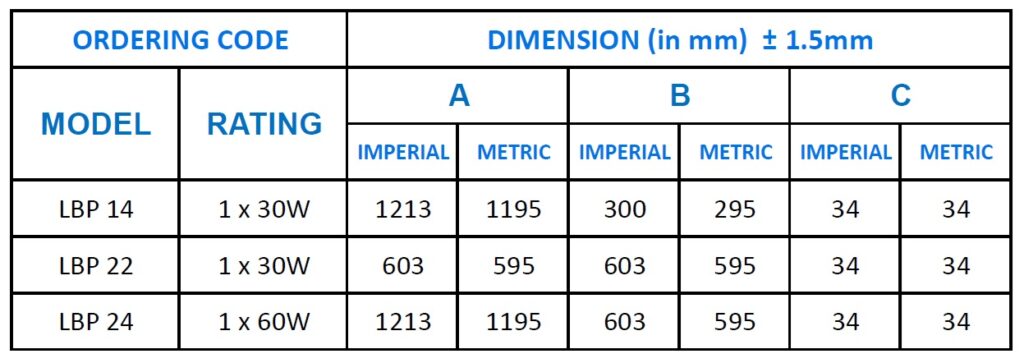

DIMENSION(±1.5mm)

PHOTOMETRIC



Applications

  • Suitable as general lighting in both industrial and domestic application.
  • School, office, corridors, walkaway, lift lobby and toilet.

Order Information
